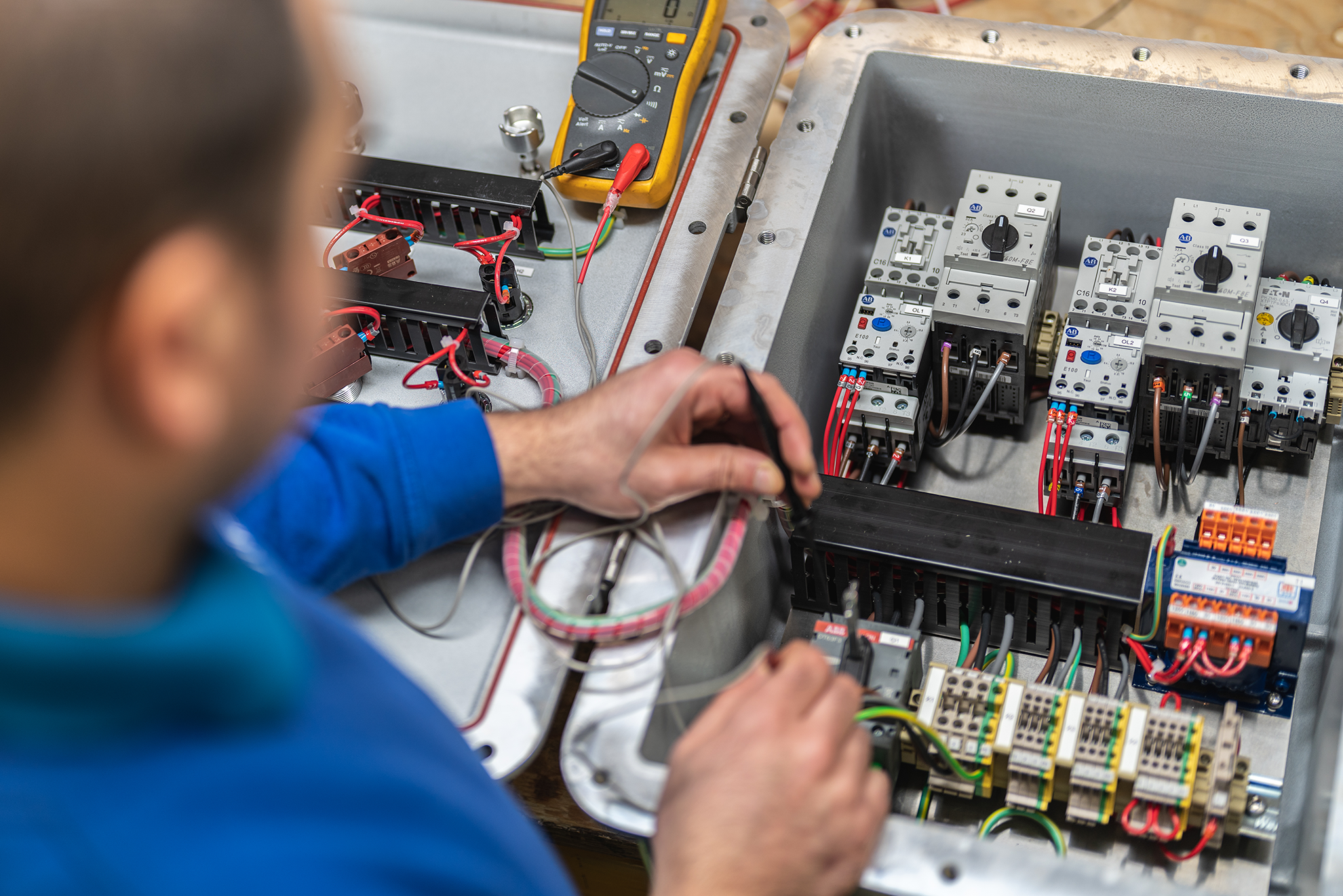

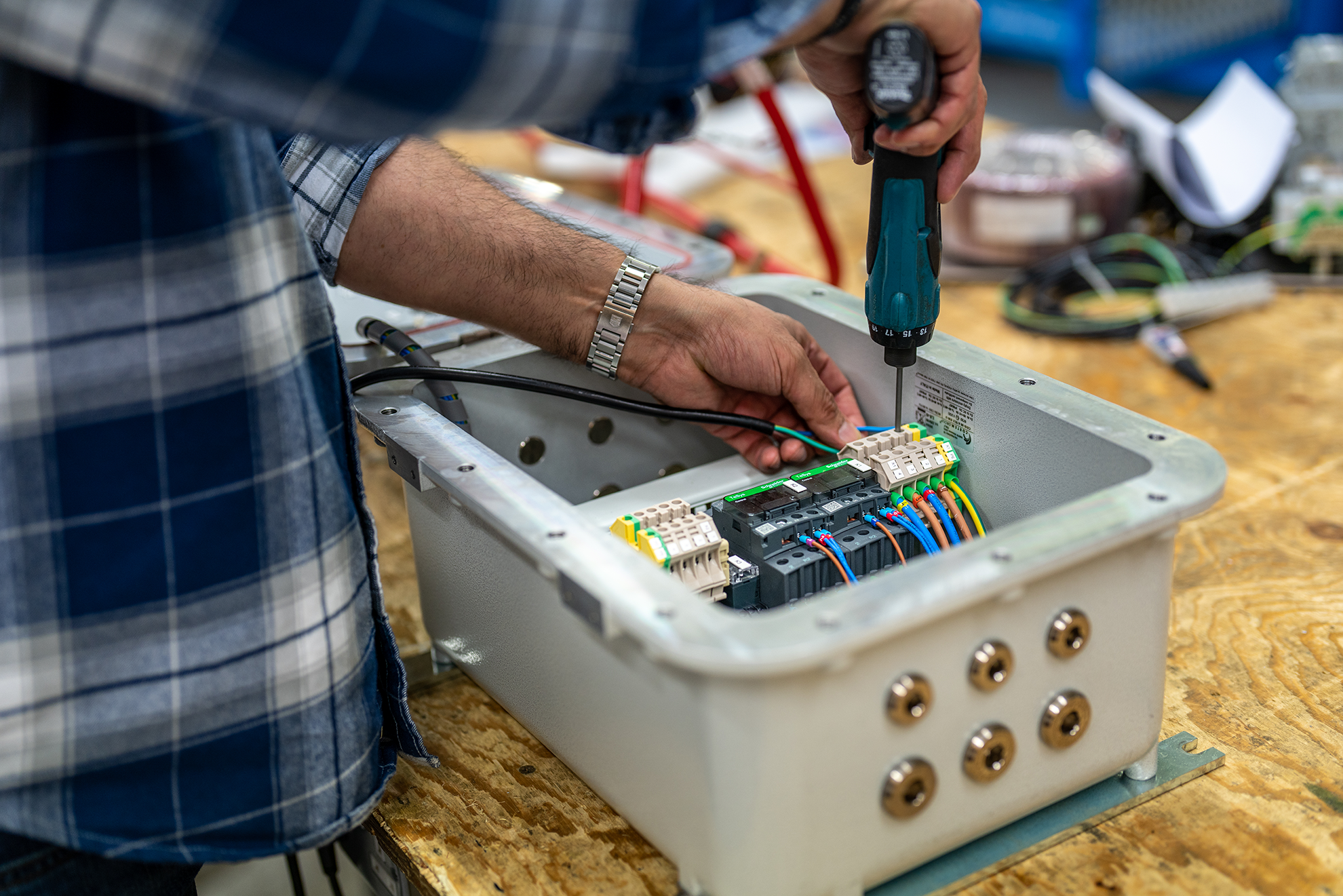

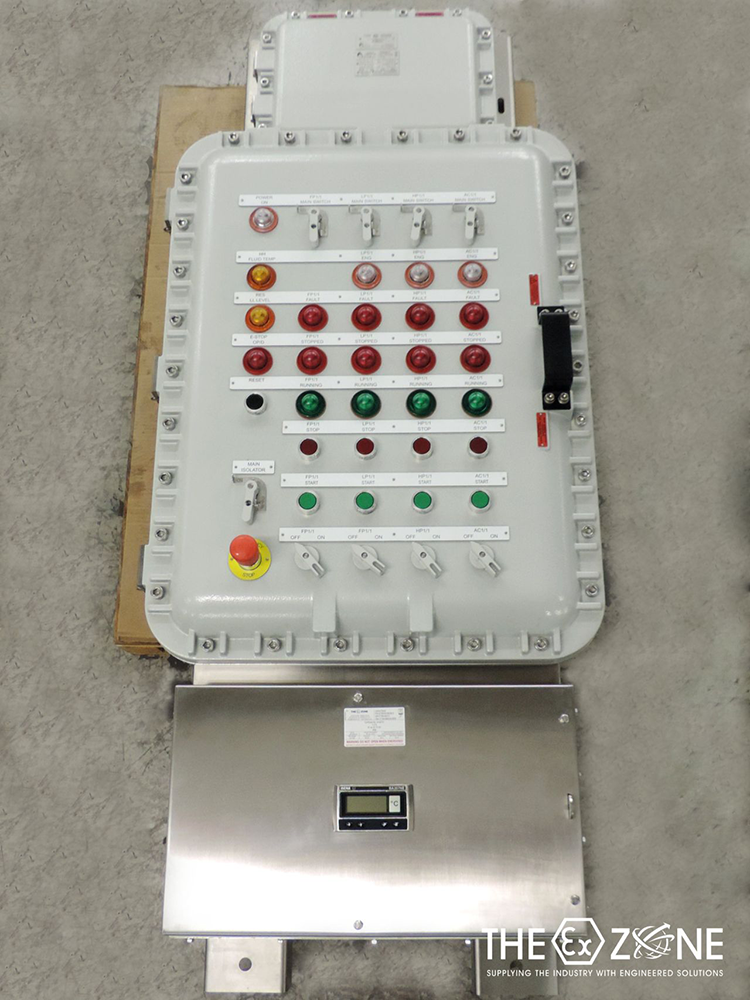

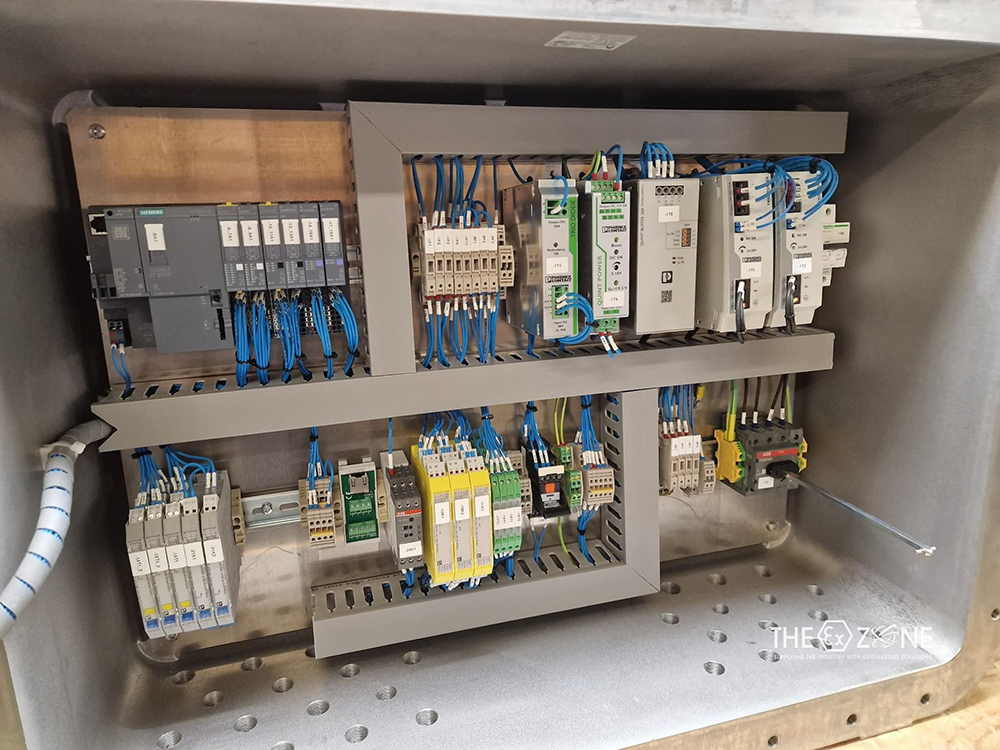

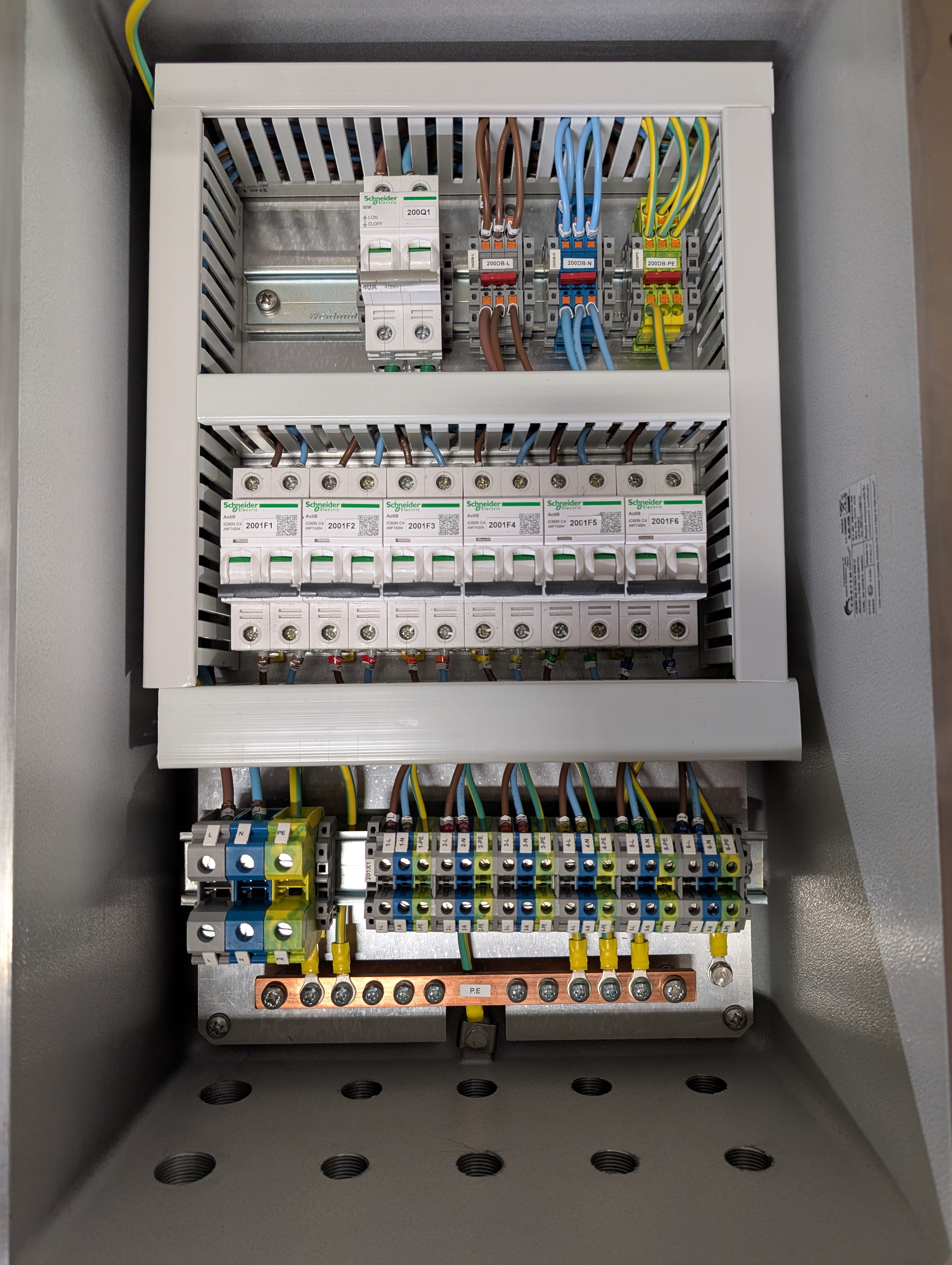

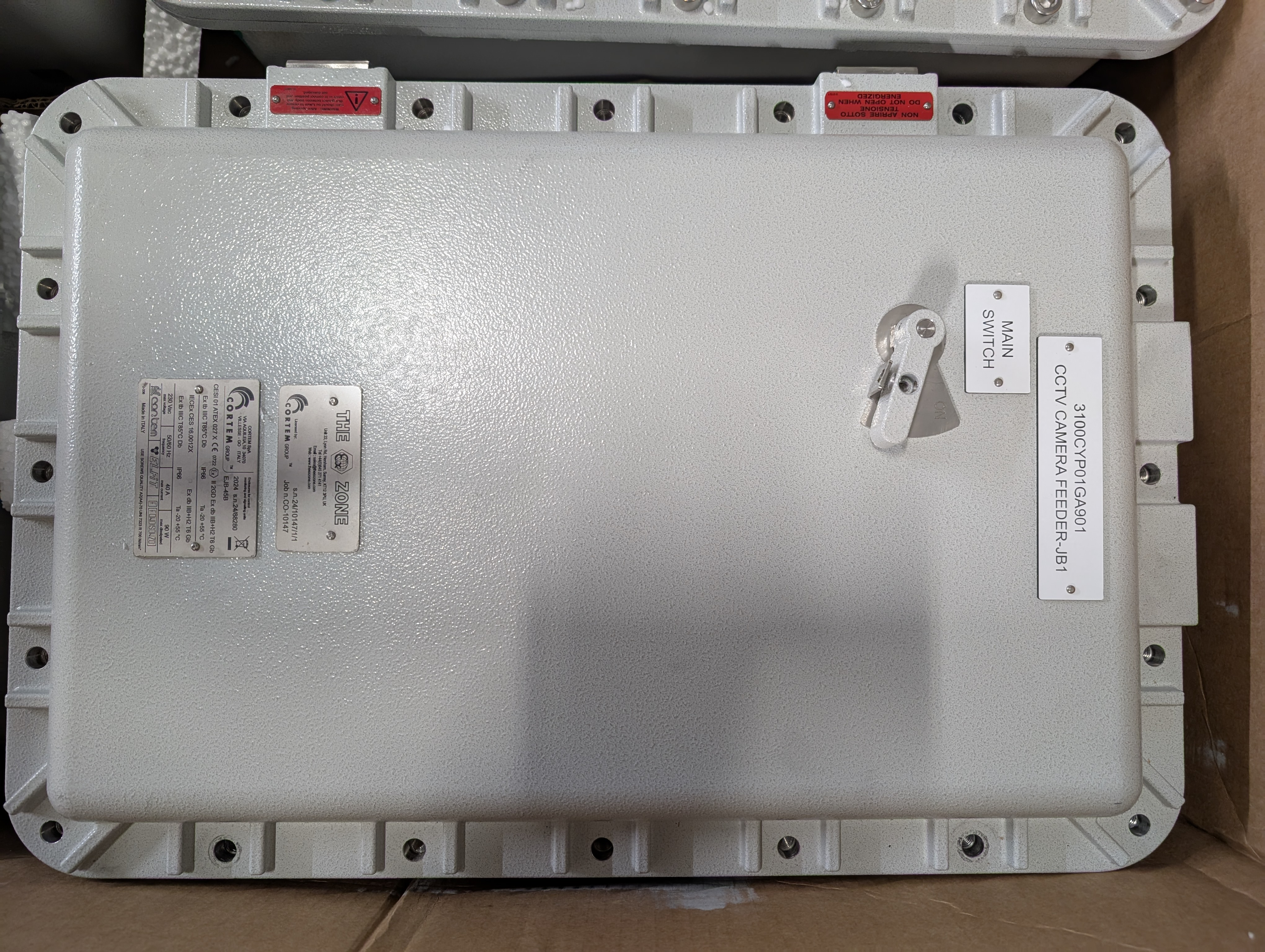

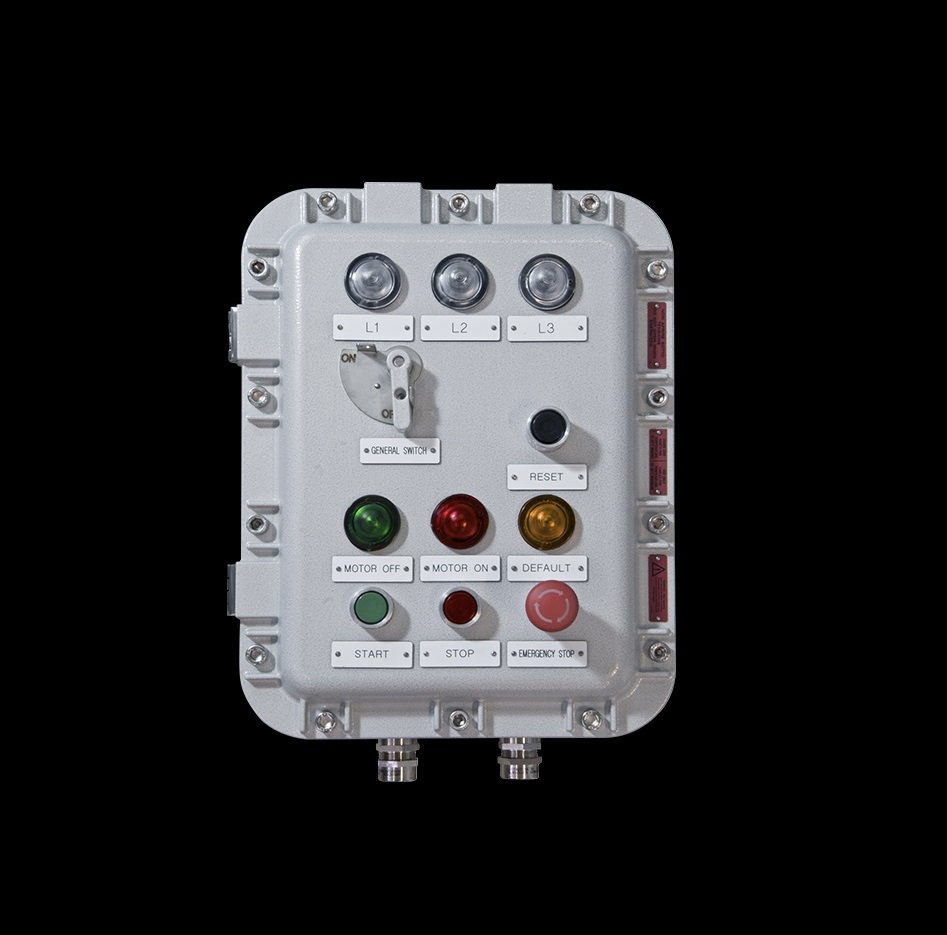

Complete control panels custom-built to suit your needs. All required components, wiring, control devices and cable entries (and cable glands) included in one or more Ex-d housing(s).
We assist you with technical advice, design, production and full certification.
Based on your requirements or drawings/design we can offer a complete Ex-d panel solution in either copperfree cast alloy (aluminium) or stainless steel housing(s).
| Application: | zone 1, 2 and zone 21 and 22 |
| Type of protection (gas): | Ex-db-IIB / IIB+H2 / IIC Ex-II-Gb |
| Type of protection (dust): | Ex-tb-IIIC-T85°C or T135°C Db |
| Ingress prot: | IP66 / IP67 |
| Material: | Copperfree cast alloy (aluminium) or stainless steel |
| Operating temp: | -20°C to +55°C |
| Certified acc to: | ATEX / IECEx |
